CSF48 is an automatic water sampler for water & wastewater treatment and industrial processes.

Automatic water sampler
Liquistation CSF48

Fully automatic sampling in water, wastewater and industrial applications

CSF48
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
CSF48 automatically takes water samples in wastewater treatment plants, sewage networks, etc.
  • F
  • L
  • E
  • X
©Endress+Hauser

Liquistation CSF48 automatically takes water samples for monitoring of wastewater treatment plants, sewage networks, surface water and industrial processes.

The stationary automatic water sampler is available with plastic and stainless steel housings.
  • F
  • L
  • E
  • X
©Endress+Hauser

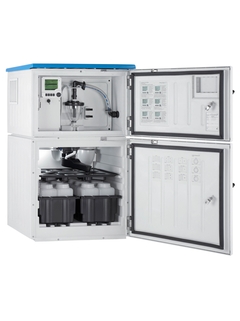

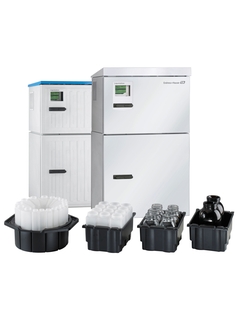

The stationary automatic water sampler is available with plastic and stainless steel housings and various sample bottle configurations.

Heartbeat Technology allows status-oriented maintenance of the automatic water sampler.
  • F
  • L
  • E
  • X
©Endress+Hauser

Heartbeat Technology allows status-oriented maintenance of the automatic water sampler.

The CSF48 vacuum sampler offers accurate sample volumes and a high sample transport velocity.
  • F
  • L
  • E
  • X
©Endress+Hauser

Liquistation CSF48 with vacuum pump. It is used for most standard sampling applications as it offers accurate, reproducible sample volumes and a high sample transport velocity.

The CSF48 peristaltic sampler allows cyclic rinsing of the suction line and variable sample volumes.
  • F
  • L
  • E
  • X
©Endress+Hauser

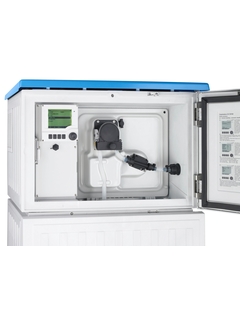

Liquistation CSF48 with peristaltic pump. This version is recommended when cyclic rinsing of the suction line or variable sample volumes are desired.

The Liquistation CSF48 sampler without pump is used for automatic sampling from pressurized pipes.
  • F
  • L
  • E
  • X
©Endress+Hauser

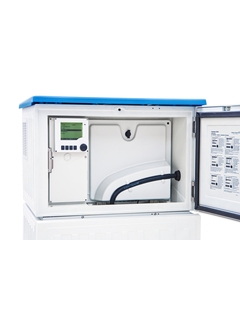

Liquistation CSF48 without pump. It is used together with the CSA420 assembly for automatic sampling from pressurized pipes or tanks. With this system no waste drainage is necessary.

Liquistation CSF48 automatically takes water samples for monitoring of wastewater treatment plants, sewage networks, surface water and industrial processes.

Specs at a glance

  • Functions

    Stationary sampler

  • Suction height

    6 m (19.69 ft) suction height
    8 m (26.25 ft) suction height

  • Cabinet

    Plastic PS
    Plastic ASA+PC
    Stainless Steel V2A
    Stainless Steel V4A

  • Process temperature

    Sample temperature: 2 to 50 °C
    (36 to 122 °F)

  • Process pressure

    Max. 0.8 bar
    (Max. 11.6 psi)

Field of application

Sampling made safe and easy. The Liquistation CSF48 automatic water sampler complies with worldwide water regulation, features a fail-safe cooling system and vandalism-proof housing guaranteeing outstanding safety for your samples. Easy, menu-guided sample programming and tool-free maintenance save you time in your everyday tasks. Liquistation can be upgraded to a complete measuring station for modern environmental monitoring at any time giving you the flexibility to address future demands.

Liquistation CSF48 is suitable for the following applications:

  • Municipal and industrial wastewater treatment plants:
    - Self monitoring
    - Process monitoring
    - Monitoring of indirect dischargers
    - Monitoring of sewage system

  • Authorities and water management authorities:
    - Water protection and water quality
    - Monitoring of direct and indirect dischargers

Benefits

  • Automatic water sampling in full compliance with all relevant national and international standards such as ISO 5667

  • 100% adaptable to any monitoring task from time- or flow-controlled sampling to event-controlled sampling and multiple sampling routines

  • By connecting up to four Memosens sensors, the sampler can be upgraded to a fully-fledged measuring station (e.g. for event monitoring)

  • Offers all the benefits of the Liquiline platform, such as uniform operation of all devices, easy expandability and reduced need for spare part stock thanks to standardized components

  • Fully integrable in any process control system thanks to digital fieldbus communication and remote access via web server

  • Quick cleaning and maintenance thanks to easy, tool-free removal of wetted parts. With our Heartbeat Technology you always know the status of your device and therefore cost and resources savings are possible.

  • Latest and environmentally friendly cooling technology without hydrofluorocarbons (HFC) for optimal processing of your samples
