Specs at a glance
-
Measured Variables
Concentration
Cell Pressure
Cell Temperature -
Hazardous area approvals
ATEX Zone 2
Field of application

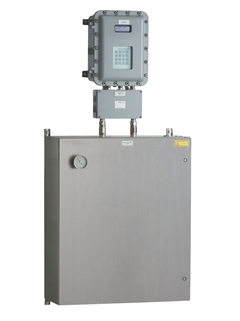

The SS2100a gas analyzer measures accurate trace gas components (H2O, CO2, H2S, NH3, and C2H2) in natural gas and hydrocarbon processing applications using tunable diode laser absorption spectroscopy (TDLAS) technology. It requires little maintenance and does not need recalibration or periodic replacement parts. The SS2100a is certified for ATEX Zone 2.
Gas analysis: ppb level measurement of H2O & NH3, ppm level measurement of H2O, H2S, CO2, NH3, and C2H2, and % level measurement of H2S and CO2
Natural gas: production, storage, transportation, distribution
Refinery: hydrogen recycle, catalytic reforming, flaring, cracking
Gas processing: fractionation, sour/acid gas removal
LNG: liquefication, custody transfer
Petrochemical: cracking, acetylene converter, caustic wash tower
Biomethane: H2O and H2S quality measurements
Benefits
Accurate, real-time measurements
Low cost of ownership; no consumables; virtually maintenance free and reliable in harsh environments
Measurements not hampered by wet-up (absorption) or dry-down (desorption)
Dependable with greater repeatability than surface-based sensors
Analog and serial outputs for remote monitoring
Available for the following measurements: H2O, CO2, H2S, NH3, C2H2
ATEX Zone 2 certified
