Differential pressure
Deltabar FMD77

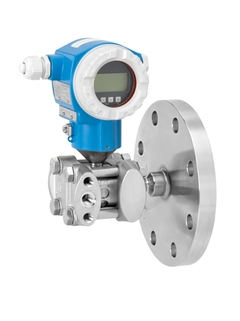

Differential pressure transmitter with one diaphragm seal for level measurement

FMD77

Compare

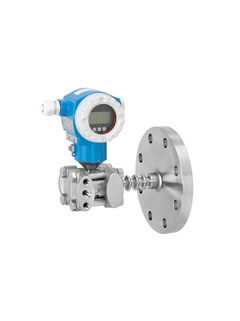

Deltabar FMD77 temperature isolator short, transmitter vertical

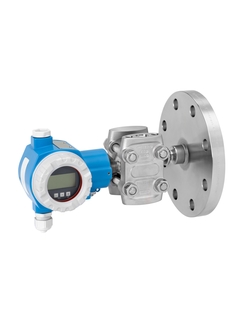

Deltabar FMD77 temperature isolator short, transmitter horizontal

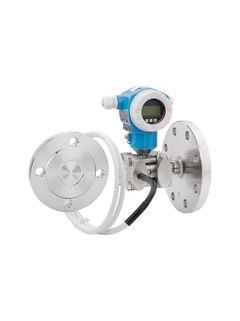

Deltabar FMD77 with two diaphragm seals and a capillary on the low pressure side

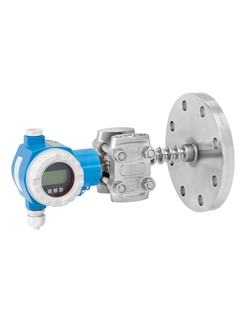

Deltabar FMD77 temperature isolator long, transmitter horizontal

Specs at a glance

Accuracy

0,075% + influence of diaphragm seal
Process temperature

-40°C...400°C
(-40°F...752°F)
Pressure measuring range

100mbar...16bar
(1.5psi...230 psi)
Process pressure / max. overpressure limit

160bar (2400 psi)
Main wetted parts

Alloy C276
316L
Monel
Tantalum
Max. measurement distance

160m (525ft) H2O
Material process membrane

316L, AlloyC,
Tantal,
Gold-Rhodium,
PTFE
Measuring cell

100 mbar...16 bar
(40 inH20...240 psi)

See all specifications

Field of application

The Deltabar FMD77 differential pressure transmitter with metal sensor uses a one-sided diaphragm seal or diaphragm seals on both sides with a capillary on the low pressure side. Typically used in the process industry for continuous level measurement in liquids. The integrated HistoROM data module makes the management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety applications.

For level, volume or mass measurement in liquids.

Process connections: Threads and flanges
Temperature: -70 to +400°C (-94 to +752°F)
Measuring ranges: +100mbar to +16bar (+1.5 to +240psi)
Accuracy: ±0.075%
International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL

Benefits

Large variety of different process connections and membrane materials
Highest safety due to gas-tight feedthrough with capabilities up to SIL2/3, certified to
IEC 61508
New TempC Membrane minimizes influences of ambient and process temperature fluctuations
Easy menu-guided commissioning via local display, 4 to 20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Cost savings with modular concept for easy replacement of sensor, display or electronics
Seamless and independent system integration (HART/PA/FF)

Videos

Pressure measuring principle

Extended selection

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Loading alternative products

Predecessor

Deltabar S FMD630
