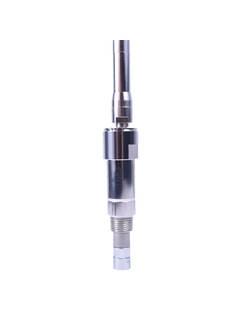

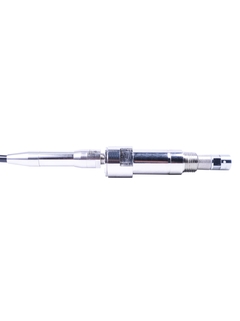

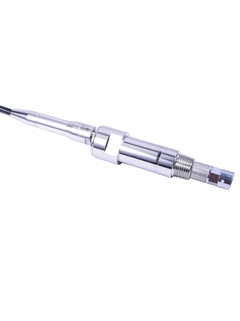

The Raman Rxn-30 probe has cross-industry appeal for its robust gas-phase headspace monitoring, in situ measurements, and material compatibility. Certified for use in hazardous area environments, the Raman Rxn-30 probe can be inserted directly into processes with temperatures up to 150 degrees Celsius and pressures up to 68.9 barg (1,000 psig). It is available with a variety of mounting options for maximum installation and sampling flexibility.
Uusien TDLAS-analysaattoreiden rakenteet on päivitetty ja niissä on lisää liitettävyysvaihtoehtoja erittäin tarkkaan ja luotettavaan mittaukseen ilman perinteisiä ongelmia.
Probe spectral coverage is limited by the coverage of the analyzer being used.
Ambient temperature
Nonexplosive environments: -20 to 150 °C / -4 to 302 °F Explosive environments: T4: –20 to 70 °C / –4 to 158 °F T6: –20 to 65 °C / –4 to 149 °F Limited to normal ambient temperature IEC 60079-0 for Korea
Relative humidity
0 to 95%, non-condensing
Maximum laser power into probehead (mW)
< 499
Sample interface
Probe operating temperature: -20 to 150 °C / -4 to 302 °F Temperature ramp: ≤ 6 °C/min ≤ 10.8 °F/min
An overview brochure about our Raman Rxn5 analyzer (including
the Raman Rxn-30 probe, the Rxn-40 probe, and the Rxn-41 probe),
a Raman spectroscopy analyzer system for gas phase measurements
powered by Kaiser Raman technology.
An overview brochure about our Raman Rxn5 analyzer (including the Raman Rxn-30 probe, the Rxn-40 probe, and the Rxn-41 probe), a Raman spectroscopy analyzer system for gas phase measurements powered by Kaiser Raman technology.
Raman analyzer application guide for the oil & gas and chemical
industries - Composition analysis of gas streams and LNG
PU (julkaisu)
Englanti - 12/2021
New version available in English
A guide to our Raman spectroscopy analyzer and probe portfolio, powered by Kaiser Raman technology, for composition analysis of gas streams and LNG (includes the Raman Rxn4 analyzer, the Raman Rxn5 analyzer, the Raman Rxn-30 probe, and Raman Rxn-41 probe) in the chemical industry and oil & gas industry.

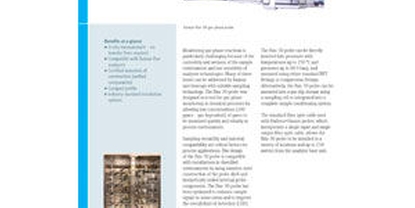

An overview brochure about the Raman Rxn-30 probe, a Raman spectroscopy probe for gas phase measurement powered by Kaiser Raman technology in the Oil & Gas industry and Chemical industry.
