Best applicable for use in hygienic or aseptic pipes and containers or tanks even with very small immersion lengths. It meets increased protection requirements of the temperature sensor regarding physical and chemical effects. Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes.
Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries
Pressure range up to 40 bar (580 psi)
For increased protection requirements of the temperature sensor regarding physical and chemical effects
For use in pipes and containers or tanks
Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes
Edut
iTHERM QuickNeck – cost and time savings thanks to simple, tool-free recalibration of the insert used
Over 50 hygienic process connections
Global portfolio with metric and imperial versions
International certification: hygiene standards as per 3-A®, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability

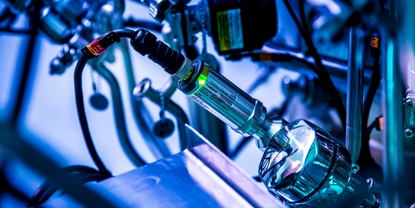

Tässä raportissa kerrotaan, miten itsekalibroivia lämpötilamittareita voidaan käyttää hygieenisessä prosessisuunnittelussa. Siinä selitetään yksityiskohtaisesti teoria ja käytäntö sekä annetaan sovellusesimerkkejä. Tutustu tarkemmin!

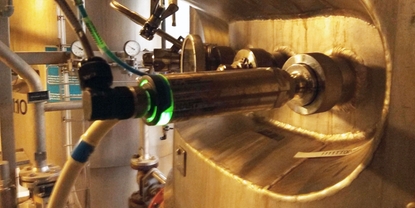

Chr. Hansenilla ravintoliuoksen iskukuumennuskäsittelyn kannalta kriittiset lämpötilanvalvonta ja kalibrointi helpottuivat, kun käyttöön otettiin iTHERM TM411 -lämpötila-anturi
metric style hygienic/aseptic design (3-A®, EHEDG, ASME BPE, FDA) hygienic process connections iTHERM QuickNeck for easy and cost saving recalibration
Head connection
iTHERM QuickNeck male thread: M24x1,5 G3/8"
Maximum standard immersion length
4.000 mm (157,48")
Max. immersion length on request
Not defined
Process connection

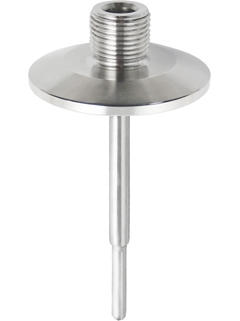

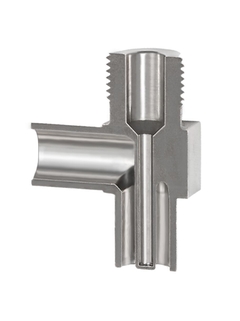

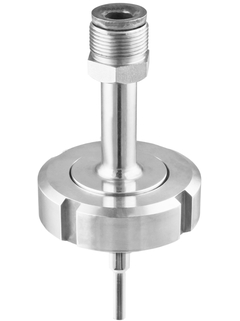

compression fitting weld in adaptor clamp connections acc. to ISO2852 screwed pipe joint acc. to DIN 11851 aseptic screwed pipe joint acc. to DIN 11864-1 metallic sealing system thread acc. to ISO 228 for liquiphant adaptor APV Inline Varivent Ingold SMS 1147 Neumo Biocontrol Tee and elbow thermowells DIN11865
